Hewlett Packard Enterprise

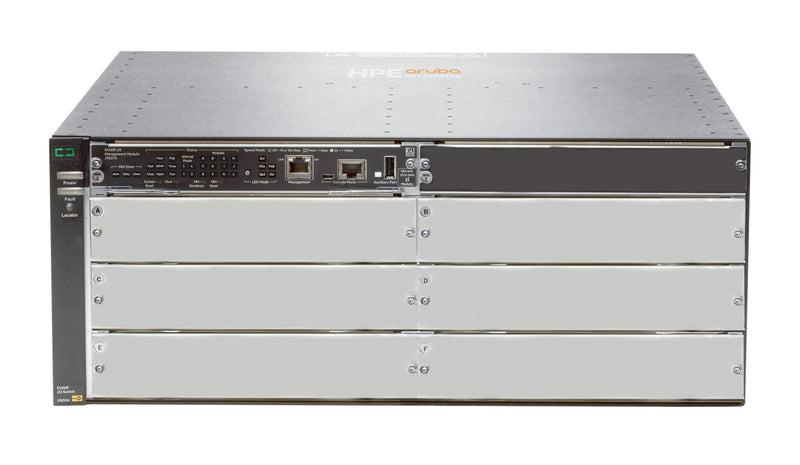

HPE Aruba Networking 5406R zl2 Switch Administreret Grå

Varenr.: J9821A

Midlertidigt udsolgt
33.808,75 kr

Ekskl. moms: 27.047,00 kr

Antal

Få besked når produktet er på lager igen

Levering 1-3 hverdage med PostNord eller GLS
Bestil inden kl. 14.00 på hverdage — så pakker vi din ordre hurtigst muligt
30 dages returretFuld returret fra modtagelse
Sikker betalingVisa, Mastercard & MobilePay
Dansk kundeservice+45 60 79 44 33
  • Administreret
  • Switch kapacitet: 960 Gbit/sek.
  • Stabelbar
HP 5406R zl2 Switch

The HP 5400R zl2 Switch Series is the next-generation modular switch designed for enterprise edge and SMB and branch office core deployments. With enterprise-class resiliency and unprecedented flexibility, scalability and ease of use, the 5400R supports demanding network features such as hitless failover, power supply redundancy, QoS and security with full L3 features.
Robust virtualization with HP AllianceOne solutions and flexible connectivity including 10 Gigabit Ethernet and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.

Flexible, Powerful and SDN-Ready for the Campus Network

• The HP 5400R zl2 Switch Series provides enterprise-class resiliency and unprecedented flexibility, scalability and ease of use for enterprise edge, and SMB and branch office core deployments.


Resiliency and High Availability at the Edge

• The HP 5400R zl2 Switch Series uses the 5th generation HP Networking ASIC and delivers wire-speed classification and policy enforcement. This hardware-based control of access and traffic allows protection, detection and response to network threats with no network performance degradation.


Robust Security and Quality of Service for a Secure Network

• The HP 5400R zl2 Switch Series includes a robust set of security and quality of services features to build a secure network that meets ever-changing corporate policies and compliances.


Single View of the Network

• The HP 5400R zl2 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

Administrationsfunktioner
Switch-type Administreret
Dataoverførsel
Switch kapacitet 960 Gbit/sek.
Gennnemløb 571,4 Mpps
Latens (1 Gbps) 2,9 µs
Latens (10 Gps) 2 µs
Design
Stabelbar Ja
Produktfarve Grå
Præstation
Indbygget processer Ja
Processorfrekvens 1200 MHz
Hukommelsestype DDR3-SDRAM
Intern hukommelse 4096 MB
Flashhukommelse 16 MB
Strømstyring
Strømforsyning inkluderet Ingen
Vekselstrømsindgangsspænding 200 - 240 V
Strømforsyning note 2 power supply slots 1 minimum power supply required (ordered separately)
Power over Ethernet (PoE)
Strøm over Ethernet (PoE) Ingen
Andre funktioner
Reaktionstid 1000 Mb Latency: < 2.8 µs; 10 Gbps Latency: < 1.8 µs; 40 Gbps Latency: < 1.5 µs
Målstyring HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager
Hukommelse og processor Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.
Vægt (efter britisk standard) 11,1 kg (24.5 Pund)
I/O-porte 6 open module slots Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40 GbE ports, or a combination.
Dimensioner (BxDxH) (efter britisk standard) 444,5 x 450,9 x 175,3 mm (17.5 x 17.8 x 6.9")
Driftsbetingelser
Varmeafgivelse 2450 BUT/t
Vægt & størrelser
Bredde 444,5 mm
Dybde 450,9 mm
Højde 175,3 mm
Vægt 11,1 kg
